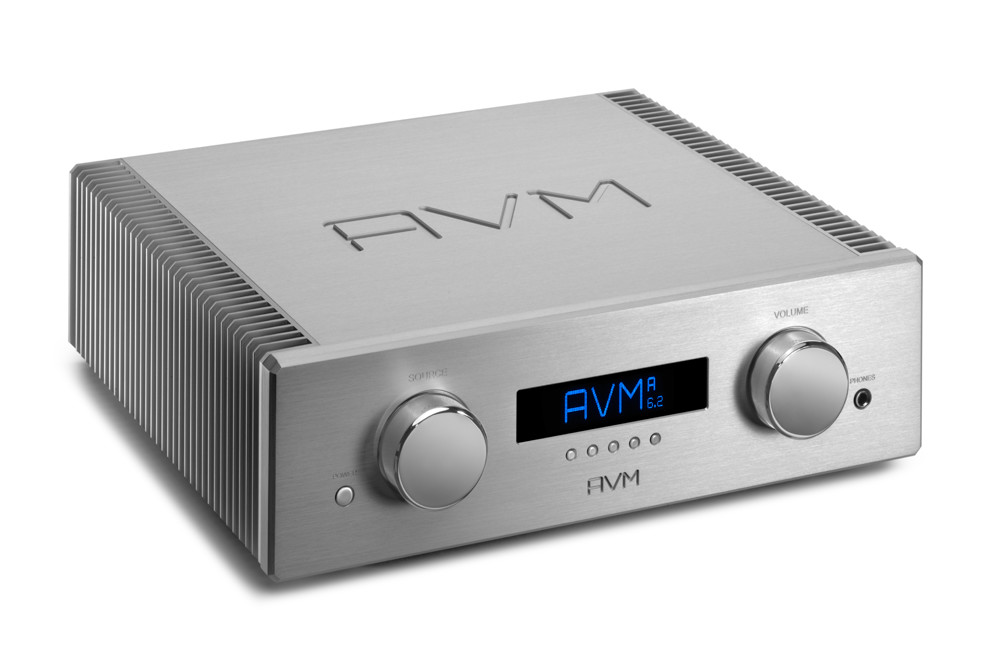

Integrated Amplifier of the all-new OVATION 6.2 Line
Class A / AB High Current MOS-FET Technology
2 x 225 Watt / 8 Ohms
2 Balanced Inputs
5 Unbalanced Inputs
Home Theatre Throughput
Class-A Headphone Amplifier
22 kg, delivered in AVM OVATION flight case

Specifications

Amplifier

Input sensitivity (25W/4 Ω)

20 mV –350 mV (adjustable)

Input impedance high-level RCA

6,8 kΩ

Signal-to-noise ratio

101 dB(A)

Frequency response

< 5 Hz - > 50 kHz

THD (25 W/4 Ω)

< 0,1%

Attenuation factor

>200

Power

2 x 335 W (4 Ω) / 2 x 225 W (8 Ω)

Miscellaneous

Supply

230V/50Hz, 120/60Hz

Power consumption max.

1100 W

Standby

<0,5 W

Dimensions (W x H x D)

430 x 130 x 390 mm

Weight

22 kg

Warranty

3 years
