The Criton 1TD-X is a highly acclaimed speaker kit that has earned rave reviews from critics and customers alike. Praised for its detailed yet non-fatiguing sound, deep and impactful bass, and exceptional imaging, the 1TD-X has received hundreds of 5-star reviews and appears on multiple "best of" lists from reviewers.
This kit offers a rewarding and straightforward DIY experience, with assembly possible in just a weekend (depending on your finishing choices). We've designed it for easy assembly with precision-machined, fully rabbeted cabinets and our innovative SmartNode crossover boards.
High-Performance Sound
At the heart of the Criton 1TD-X are premium components designed for low distortion, high clarity, and immersive sound:
- LDW7 Woofer – Delivers clean, powerful bass that remains composed even at high output levels, offering unmatched bass clarity compared to other woofers.
- LD25X Tweeter with XBL^2 Motor – Provides a detailed yet smooth treble, ensuring hours of fatigue-free listening across all genres.

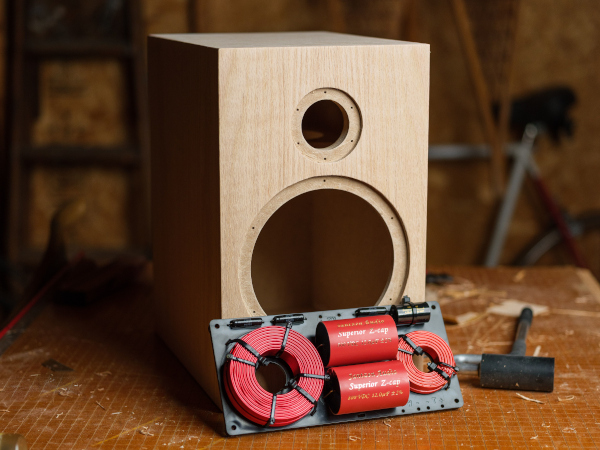

Customizable Crossover Options
The standard crossover includes poly caps, steel laminate inductors, and standard resistors, providing excellent performance. For an enhanced experience, we offer an upgraded crossover option, featuring:
- Mills resistors
- 14 AWG air core inductors
- Jantzen Superior Z-caps for the tweeter circuit
Choose Your Build Level
No matter your skill level, there's an option for you:
- DIY Kit (Lowest Cost, Highest Skill)
- Includes all necessary components but no cabinet parts.
- Requires at least a table saw (or circular saw) and router with a circle jig.
- Cabinet plans are provided.
- MDF Flat Pack (Medium Cost, Medium Skill)
- Precision-cut MDF panels for easy assembly.
- Requires gluing and finishing (paint or veneer recommended).
- See our blog post for finishing tips.
- Fully Finished Speakers (Highest Cost, Lowest Skill)
- Hand-built in the U.S.A. and delivered ready to use.
- Perfect for those who want premium sound with zero hassle.
- Contact us for available finishes.
Designed for Engaging, Natural Sound
We meticulously design all our speakers for balance, clarity, and musical engagement using a combination of:
- Advanced acoustic measurements
- Sophisticated modeling
- Critical listening tests
Our expert crossover design ensures seamless driver integration, converting even die-hard full-range enthusiasts into crossover believers. Every detail is optimized, so you can build with confidence, knowing your finished speakers will sound incredible.
Crossover Point: 1600 Hz
Recommended Power: 20 watts and up
Nominal Impedance: 8 Ohm
Frequency Response:
- +/- 2 dB from 45 Hz to 14 kHz anechoic
- +/- 3 dB from 40 Hz to 20 kHz anechoic
- 30 Hz to 20 kHz in room
Sensitivity: 87 dB @ 2.83 V
Fb: 39 Hz
F3: 41 Hz
External Dimensions: 14"H x 8.5"W x 12"D
Assembled Weight: 25 lbs each (Superior Crossover) / 23.5 lbs each (Standard Crossover)
