Sidebar 1: Specifications

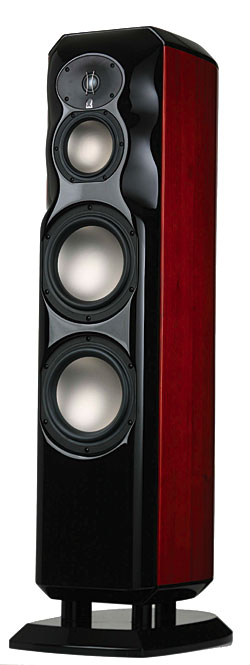

Description: Three-way bottom-ported, floor-standing loudspeaker. Drive-units: 1" beryllium-dome tweeter in waveguide front plate, 5.5" inverted titanium-dome midrange driver, two 8" inverted titanium-dome woofers. Crossover frequencies: 230Hz, 2kHz. Anechoic frequency response: 32Hz–45kHz, –3dB. Frequency response on axis: 33Hz–20kHz, ±1dB. In-room response relative to target response: 31Hz–18kHz, ±0.5dB. Low-frequency extension: –10dB at 21Hz, –6dB at 25Hz, –3dB at 32Hz. Impedance: 6 ohms nominal, 3.7 ohms minimum. Sensitivity: 88.7dB/2.83V/m (2 pi anechoic).
Dimensions: 46.25" (1175mm) H by 13.75" (349mm) W by 20.5" (521mm) D, all including nonremovable base. Shipping weight: 140 lbs (63.5kg).
Finish: Black or mahogany, both high-gloss.
Serial Numbers Of Units Reviewed: 20143, 20144.
Price: $15,999/pair. Approximate number of dealers: 40.
Manufacturer: Revel, Harman Specialty Group, 1718 W. Mishawaka Road, Elkhart, IN 46517. Tel: (516) 594 0300. Web: www.revelspeakers.com.
Dimensions: 46.25" (1175mm) H by 13.75" (349mm) W by 20.5" (521mm) D, all including nonremovable base. Shipping weight: 140 lbs (63.5kg).
Finish: Black or mahogany, both high-gloss.
Serial Numbers Of Units Reviewed: 20143, 20144.
Price: $15,999/pair. Approximate number of dealers: 40.
Manufacturer: Revel, Harman Specialty Group, 1718 W. Mishawaka Road, Elkhart, IN 46517. Tel: (516) 594 0300. Web: www.revelspeakers.com.
